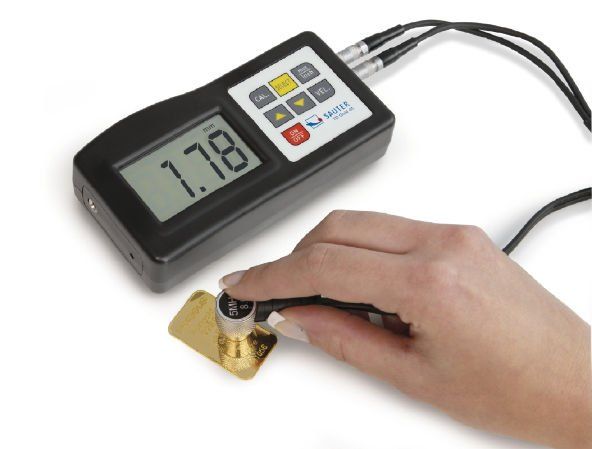

SAUTER TD-GOLD Compact Ultrasonic Thickness Gauge
TD-GOLD Compact Ultrasonic Thickness Gauge
You can use the TD-GOLD to determine whether gold bars and coins are genuine or whether they contain a core of a different material
The instrument measures the thickness of gold bars and gold coins using ultrasound
Process: Ultrasound waves are directed onto the test object using a sensor. The waves penetrate the test object, are then reflected from a surface opposite the object and then picked up again by the sensor. The measurement determined by this process will be compared with the material thickness as measured by a traditional calliper gauge. On the basis of the measurement given, false cores (Figure: grey) such as for example, those made of tungsten, lead, etc. can be easily identified, as the ultrasound reacts differently, compared with pure gold
Using the SAUTER SSG software (included), you can determine whether the test item is genuine or contains a false core – and you can be very confident of the result
Known additions in tested gold items – e. g. copper or silver - are compensated by the software
In addition, the software determines the value of the gold item. The price of gold is polled on line continuously
It is the only test process which measures right through the whole bar or the whole coin without interference and thereby guarantees the highest level of certainty
Base plate for calibration included
Delivered in a hard carrying case
