MEGGER TDR2010/3P Dual Channel Power TDR
TDR2010/3P Dual Channel Power TDR

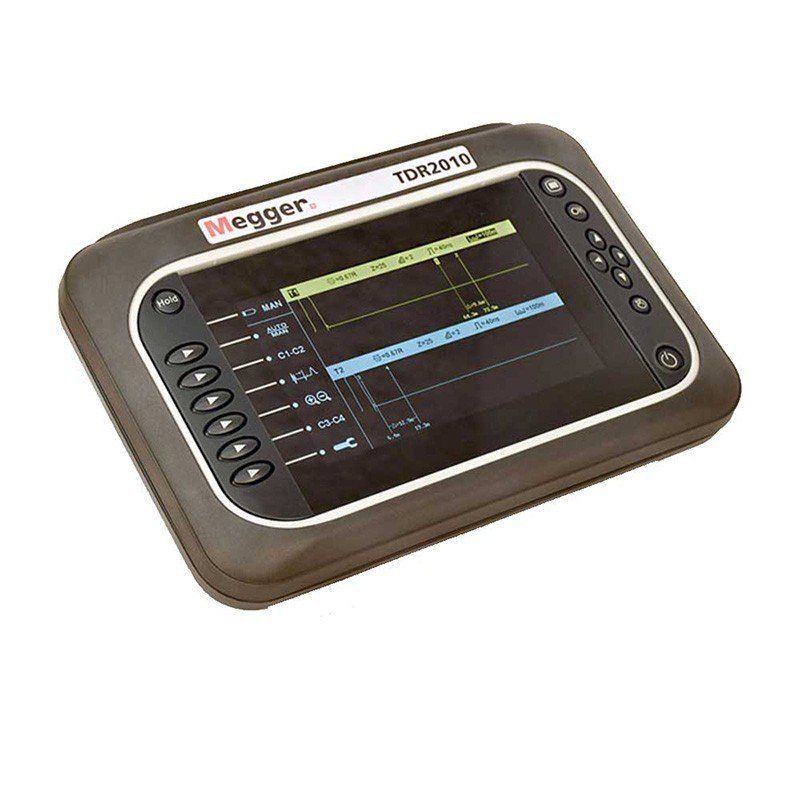

The Megger TDR2000/3P is highly portable, high resolution, compact, dual channel time domain reflectometers with a large colour screen for locating faults on paired metallic cables in applications as diverse as Megger TDR2000 fault display.street lighting, telephony and CATV.
The TDR2000/3P has a minimum resolution of 0.1m/0.3ft and a 20km/60kft maximum range depending on the velocity factor selected and the cable type. Five output impedances are available (25, 50, 75, 100, 125 ohms) and an auto impedance matching feature. The velocity factor can be set between 0.2 and 0.99 to meet any cable test requirements.
The Megger TDR2000/3 series has built in intelligent charge management technology so that the battery never overheats and maximum charge rate is maintained, meaning a longer battery life is possible
Range: Up to 20000m with a minimum resolution of 0.1m.
Resolution: 1% of range.
Output Pulse: Up to 20 volts peak to peak into open circuit. Pulse widths determined by range and cable.
Adjustable display contrast.
AutoFind guide to potential fault location.
100 trace on board memory.
USB connection to PC allowing upload and download of traces.
“TraceXpert” PC software analysis tool.
For use on Telecom TNV-3 circuit, or 150V CAT IV power circuits.
Power blocking filter built-in.
Selectable output impedance (25, 50, 75,100 and 125Ω).
2ns pulse for near end fault location.
Display: 800 x 480 pixel colour graphics LCD, viewable in external environments.
Battery: Li-ion rechargeable battery.
Battery Life: 12 hours typical.
IP rating: IP54.
Dimensions: 290 x 190 x 55 mm (11.4 x 7.5 x 2.2 inches).
Weight: 1.7kg (3.8lbs).
Megger TDR2000/3P Warranty: 2 years.
Includes: Megger TDR 2000/3P, Carry Case, fused test leads and User Guide CD.
