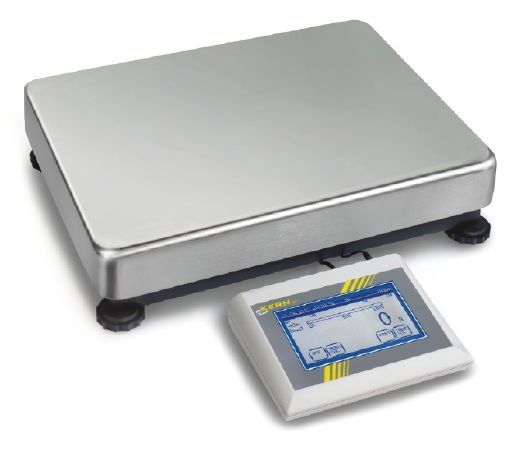

KERN IKT Industrial Platform Scale
IKT Industrial Platform Scale
Convenient recipe weighing: 99 recipes each with 10 components can be stored in plain text (IKT-M: 5 recipes each with 7 components). If one recipe ingredient is more than it should be, then the practical back calculation function automatically calculates the new target weights of the other ingredients. The actual and target values and the proportional percentage can then be printed
Multiplier function: recipes where the ingredients have been recorded as percentages can easily be multiplied up when you enter the new target weight, which is ideal for the production of larger containers, bulk packs etc.
Rapid function for shortened stabilisation time with reduced resolution
Control outputs (optocoupler, digital I/O) to connect relays, signal lamps, valves etc. (35 V / 80 mA)
For particularly high counting accuracy, there is an option of combining the KERN IKT range with a high-precision reference balance to make a counting system, please enquire
Modes
1. Weighing
2. Counting
3. Dispensing
4. Recipe weighing
5. Checkweighing
6. Totalising with daily total
7. Percentage determination
8. Animal weighing
9. Surface weight
10. Density determination, only with B, not for
11. Rapid function, not for
Functions
Capacity display, with 1. - 7.
Dispensing assistance (-/+),
Net/Gross display, permanently on, with 1. - 7.
Variable reference quantity, with 2.
Automatic reference optimisation, with 2.
Tare deduction numerical or from the memory unit, with 1. - 7.
Input of item or batch description, operator etc., with 1. - 7.
Freely programmable weighing unit, e. g. display directly in special units such as length of thread g/m, paper weight g/m2, or similar,
Date/time, with 1. - 7.
Statistical function, with 1.
GLP printout,
Individual formatting of up to 16 printer forms, recipes, operating mode master data in MS Excel, Import using RS-232
