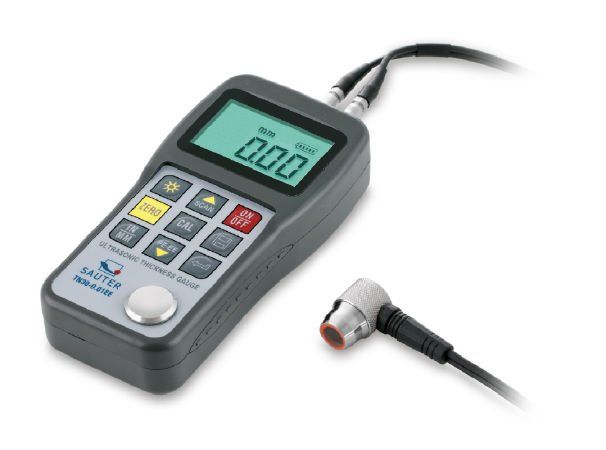

SAUTER TN-EE Hand-held Ultrasonic Thickness Gauge
TN-EE Hand-held Ultrasonic Thickness Gauge
External sensor
Data interface RS-232, standard
Delivered in a hard carrying case
Scan mode (10 measurements per sec.) or single point measuring mode possible
Internal memory for up to 20 files (with up to 100 values per file)
Selectable measuring units: mm, inch
Two measuring modes to determine material thickness:
- Pulse-echo mode
- Echo-echo mode
Determining the actual thickness of materials regardless of any coating which might be present. In this way, the wall thickness of pipes, for example can be determined in a non-destructive manner, i.e. without having to remove the coating
Echo-echo measurements are only possible with the measuring head included as part of the delivery (ATU-US12, see accessories)
