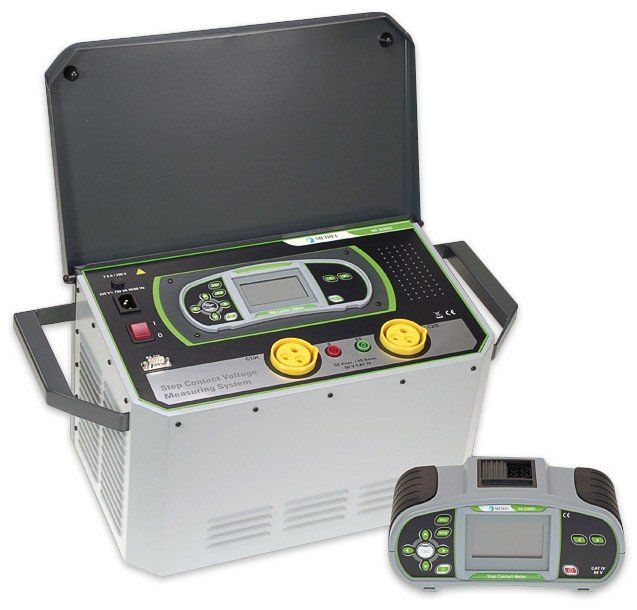

METREL MI 3295 Step Contact Voltage Testing System
MI 3295 Step Contact Voltage Testing System
MEASURING FUNCTIONS
Measurement of step voltage and contact voltage.
Measurement of earthing resistance with resolution of 1 mΩ.
Measurement of specific earth resistance.
KEY FEATURES:
High accuracy of the measurements due to a high current of up to 50 A and effective suppression of noise.
Excellent immunity even against changing earth currents.
Autonomous Step Voltage meter: no need for long voltage leads.
Low weight.
High safety due to low output voltage (55 V).
Downloads test results directly to the PC with the help of the profes-sional PC SW package HVLink which enables analysis and documenta-tion of test results.
TECHNICAL DATA
STATION
Dimensions (w x h x l): 563 X 275 X 257 mm
Weight (with batteries, without accessories): 29.5 kg
METER
Dimensions (w x h x l): 230 X 103 X 115 mm
Weight (with batteries, without accessories): 1.3 kg
