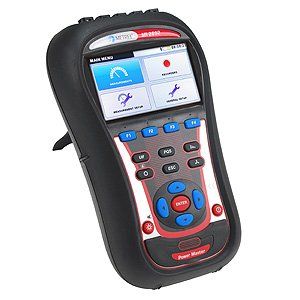

METREL MI 2892 Power Master
MI 2892 Power Master
MEASURING FUNCTIONS
Voltage: TRMS, peak, crest factor (4-channel);
Current: TRMS, peak, crest factor (4-channel);
Power (active, reactive, apparent);
Power measurements fully compliant with IEEE 1459 (active, nonactive, fundamental, harmonic, load unbalance);
Unbalance, flicker measurement;
Harmonic and interharmonic analysis up to 50th harmonics, THD measurement;
Energy (active, reactive, generated, consumed);
Capturing and recording of power supply events (shutdowns, interruptions, swells, dips);
Inrush currents monitoring and recording;
Waveform/inrush displaying, snapshot and recording;
Transients recording;
Power quality analysis according to EN 50160;
Recording up to 10 adjustable alarms;
Temperature measurement.
MAIN FEATURES
4 voltage channels with wide measurement range: 0 ... 1000 Vrms (CAT III / 1000 V);
4 current channels with support for automatic clamp recognition and “on instrument“ range selection;
Automatic Smart Clamp detection and Smart Clamp range selection;
Compliance with power quality standard IEC 61000-4-30 Class A;
Complete power quality analysis according to EN 50160 including signalling and interharmonics;
Support for microSD memory card (8-GB supplied with the instrument) up to 32GB;
Color-coded input terminals and terminal labels to suit your application region;
Intuitive main menu and large icons that makes the equipment very easy to navigate and configure;
Powerful PC SW PowerView3 enables downloading, view, analysis of recorded data and professional report creation;
Flexible clamps (without additional power supply) are included in the standard set.
