KIMO VT210 Series Hot Wire Transmitters
VT210 Series Thermo-Hygro-Anemometer
Specially designed for the control of the ventilation systems, the VT 210 allows to measure the air velocity, the airflow and the temperature in duct.
Multifunction device, it offers the possibility of measuring several parameters at the same time. According to your application, the VT 210 accepts, besides speed measurement probes (vanes, hotwire or omnidirectionnal), a hygrometry probe or climatic condition and temperature module.
Several packs are available according to your applications:
With vane probe (100mm / 70mm / 14mm) telescopic tilting in 90 ° or standard
With telescopic hotwire probe tilting in 90 ° or standard
Optional: wired or radio temperature probe and humidity probe
Measurement ranges
Velocity : from 0,15 to 35 m/s
Airflow : from 0 to 99 999 m3/h
Integrated temperature of measurement probes : -20 to 95C°
Thermocouple temperature : see temperature probes datasheet.
Options
VT210 F - Supplied with hotwire probe
VT210 TF - Supplied with telescopic hotwire probe
VT210 P - Supplied with Ø 14 mm vane probe
VT210 TP - Supplied with Ø 14 mm telescopic vane probe
VT210 H - Supplied with Ø 70 mm vane probe
VT210 TH - Supplied with Ø 70 mm telescopic vane probe
VT210 L - Supplied with Ø 100 mm vane probe
VT210 TL - Supplied with Ø 100 mm telescopic hotwire probe
VT210 M - Supplied with air velocity/temperature/hygrometry telescopic multi-function probe

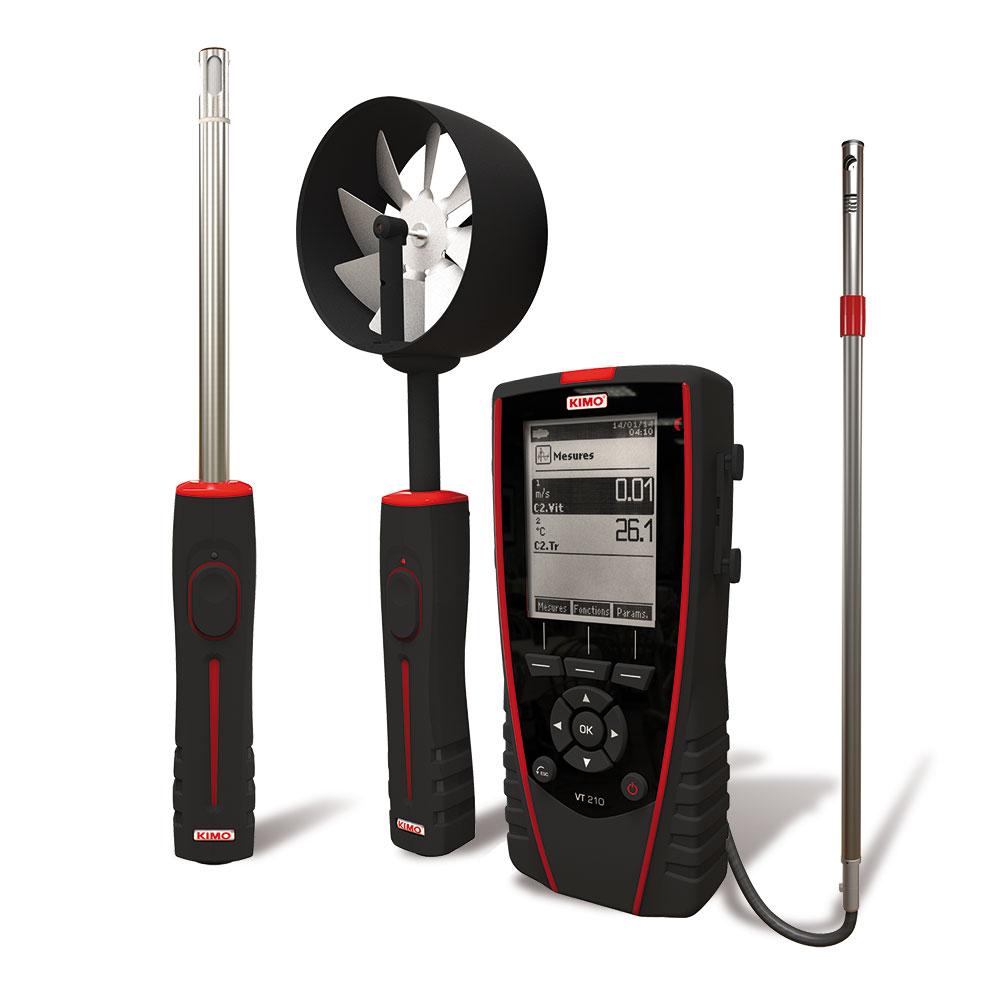

NOTE: The picture shows the instrument complete with all probes and accessories as detailed in the datasheet. The base price is for the instrument body only. Please select the probe you require or call us for a more bespoke order with probes and accessories.
