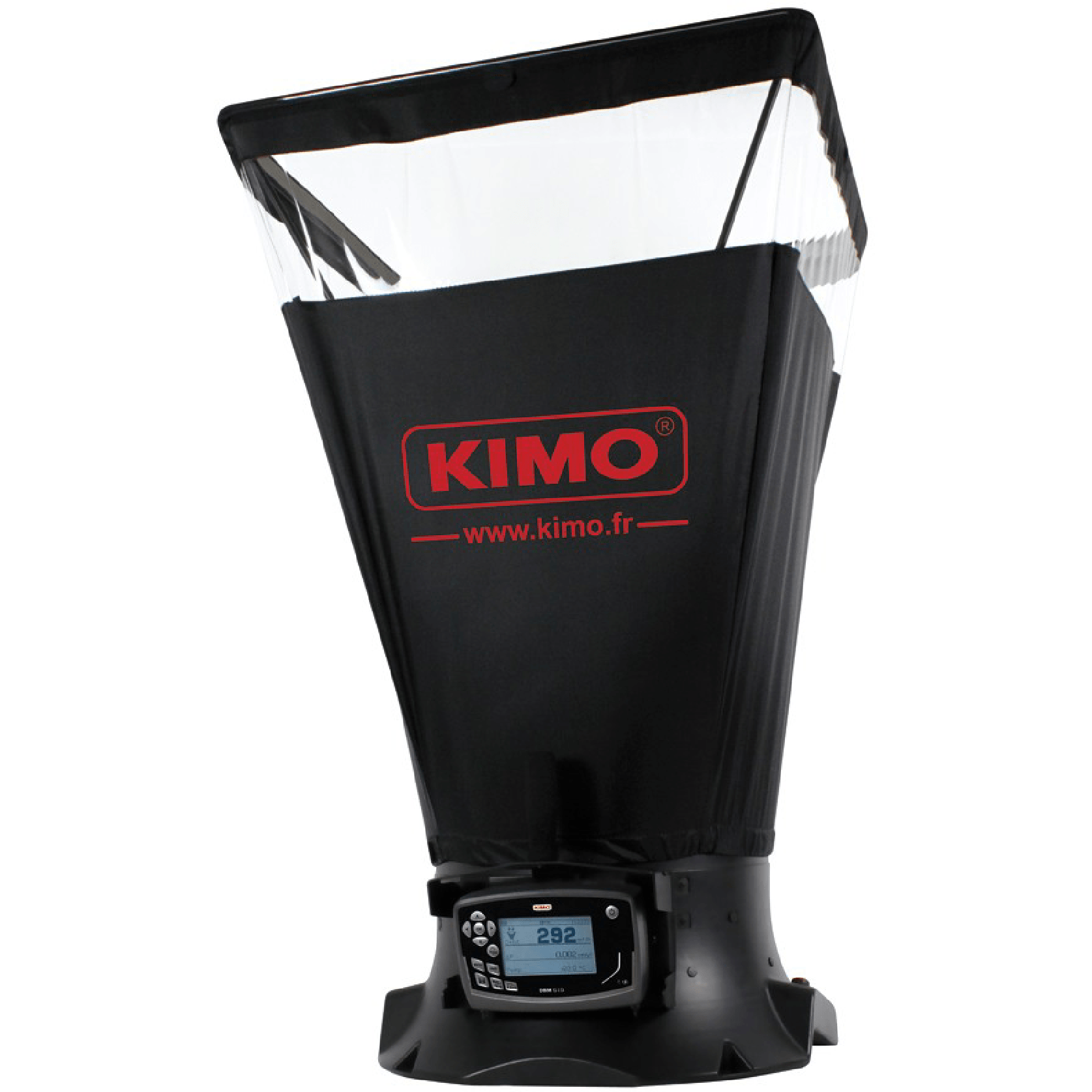

KIMO DBM610 Balometer
DBM610 Balometer
A light weight high accuracy electronic flowmeter to check the air volume from diffusers and grilles.
A tool for airflow commissioning and balancing.
Measuring range from 50 to 3500 m3/h / -2500 Pa to 2500 Pa, handles integrated on the measuring unit.
Calculation of average airflow with easy-access button, display of datasets, recording and downloading
of datasets on PC, via LPCF / DATALOGGER software (coming in option).
Quick and simple hood changes
Simultaneous display of airflow and temperature
Automatic detection of airflow direction (supply and exhaust)
Autonomous micro-manometer for air velocity measurement with differential probe (Pitot tube,
Debimo blade).
Measurement compensation according to thermocouple temerature.
Supplied with 610x610mm hood (HO 610), Pitot tube 300mm (TPL-06-300), 2 x1m of silicone tube,
calibration certificate and transport case.
The DBM610c option includes all flow hoods. Supplied with 5 hoods: 610x610 mm, 720x720 mm,
720x1320 mm, 420x1520 mm, 1020x1020 mm, calibration certificate and transport case.
