KIMO AMI310 Multi Function Meter
AMI310 Multi Function Meter
Multi-function handheld instrument with colour backlit graphic display.
PC output. (Optional PC software required)
Choice of Instrument:
AMI310 - Supplied with 2 cables with Mini-Din connector for measuring probes (in option), 2 lithium ion rechargeable batteries, with USB / mains adapter cable, Micro SD board for data storage, calibration certificate and transport case.
AMI310 CLA - Supplied with hotwire probe (0.15 to 30 m/s), ABS hygrometry probe (3 to 98%RH and -20 +80°C), Ø 70 mm vane probe (0.4 to 35 m/s), 2 cables with Mini-Din connector for measuring probes (in option), 2 lithium ion rechargeable batteries, with USB / mains adapter cable, Micro SD board for data storage, calibration certificate and transport case.
AMI310 STD - Supplied with pressure module (-10 000 + 10 000 Pa, 4 to 100 m/s), hotwire probe (0.15 to 30 m/s), ABS hygrometry probe (3 to 98% RH and -20 +80°C), Ø 100 mm vane probe (0.3 to 35 m/s), Pitot tube length 300mm, diameter 6mm, 2x1m silicone tube (black and white), stainless steel tube Ø 6mm length 100mm, 2 cables with Mini-Din connector for measuring probes (in option), 2 lithium ion rechargeable batteries, with USB / mains adapter cable, Micro SD board for data storage, calibration certificate and transport case.
AMI310 PRO - Supplied with pressure module (- 500 + 500 Pa and 2 to 28 m/s), telescopic hotwire probe, length 1m, with graduation, swivelling at 90° (0.15 to 30 m/s), STAINLESS STEEL hygrometry probe (3 to 98 %RH and -40 +180 °C), Ø 100 mm telescopic vane probe, length 1m, swivelling at +/- 90° (0.3 to 35 m/s), Pitot tube length 300 mm, Ø 6 mm with integrated TCK temperature probe, 2 x 1 m of silicone tube (black and white), stainless steel tube Ø 6mm length 100mm, 2 cables with mini-Din connector, for measuring probes, 2 lithium ion rechargeable batteries, with USB / mains adapter cable, Micro-SD board for data storage, calibration certificate and transport case.
AMI310 SK - Supplied with pressure module (-500 + 500Pa and 2 to 28 m/s), telescopic hotwire probe, gooseneck-shape. length 1m, with graduation (0.15 to 30 m/s), Pitot tube length 300mm, diameter 6mm, 2 x 1 m of silicone tube (black and white), stainless steel tube Ø 6 mm length 100mm, 2 cables with Mini-Din connector, for measuring probes, 2 lithium ion rechargeable batteries, with USB / mains adapter cable, micro-SD board for data storage, calibration certificate, and transport case.
AMI310 CRF - Supplied with hotwire probe (0.15 to 30 m/s), ABS wireless hygrometry probe (3 to 98%RH -20 + 80°C), Ø 70 mm wireless vane probe (0.4 to 35 m/s), 2 cables with mini-Din connector, for measuring probes, 2 lithium ion rechargeable batteries, with USB / mains adapter cable, Micro-SD board for data storage, calibration certificate and transport case.
AMI310 SRF - Supplied with pressure module (-10 000 + 10 000 Pa and 4 to 100 m/s), hotwire probe (0.15 to 30 m/s), ABS wireless hygrometry probe (3 to 98%RH -20 + 80°C), Ø 100 mm wireless vane probe (0.3 to 35 m/s), Pitot tube length 300mm diameter 6mm, 2x1m silicone (black and white), stainless steel Ø 6 mm tube length 100mm, 2 cables with mini-Din connector, for measuring probes, 2 lithium ion rechargeable batteries, with USB/mains adapter cable, Micro-SD board for data storage, calibration certificate and transport case.
AMI310 PRF - Supplied with pressure module (-500 + 500 Pa and 2 to 28 m/s), telescopic hotwire probe (0.15 to 30 m/s) length 1m, with graduation, swivelling at 90°, STAINLESS STEEL wireless hygrometry probe (3 to 98%RH -20 + 80°C), Ø 100 mm wireless vane probe (0.3 to 35 m/s), Pitot tube length 300mm diameter 6mm with integrated TCK, 2x1m silicone (black and white), stainless steel Ø 6 mm tube length 100mm, 2 cables with mini-Din connector, for measuring probes, 2 lithium ion rechargeable batteries, with USB / mains adapter cable, Micro-SD board for data storage, calibration certificate and transport case.
Additional Options: all measuring modules, all measuring and temperature probes (wire and wireless),software and printer.

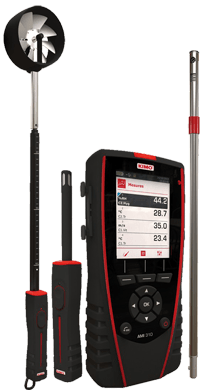

NOTE: The picture shows the instrument complete with all probes and accessories as detailed in the datasheet. The base price is for the instrument body only. Please select the probe you require or call us for a more bespoke order with probes and accessories.
