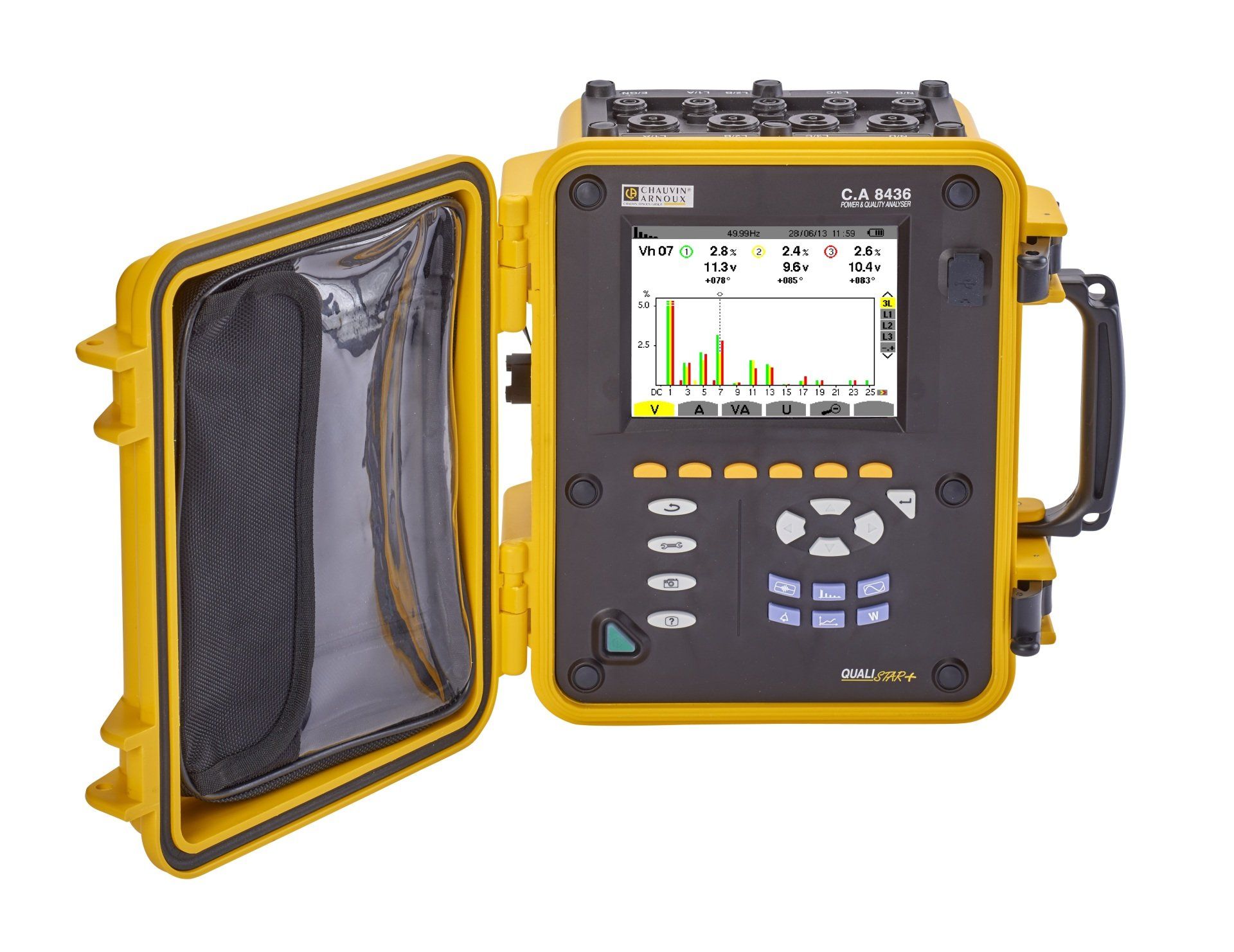

Chauvin Arnoux IP67 3 Phase Power Analyser C.A 8436
IP67 3 Phase Power Analyser C.A 8436
• C.A 8436, the rugged, waterproof IP67 Qualistar+:
Indoor and outdoor use, even when it is raining
5 voltage inputs, 4 current inputs
Continuous recording of all the parameters simultaneously
Monitoring with alarms
All types of installations
The "all-terrain" Qualistar for all seasons!
The Qualistar Plus power and energy quality analyser is ideal for quick network quality checks and effective analysis of the results.
EVEN MORE !
New C.A 8436 Qualistar+ includes major new functions:
Inrush over a period of up to 10 minutes
Integration of all the DC components
Calculation of the distortion voltages and currents
Measurement of P, Q, S and D power values, total and per phase
Calculation of Pst & Plt flicker values
Large choice of units available: kW, Joule, nuclear toe, non-nuclear toe, BTU, etc.
Up to 40 alarms can be set simultaneously!
Recording mode: recording starts immediately
Specially designed to save time!
Ideal for the needs of inspection and maintenance departments, the Qualistar models are designed for quick verification of network quality and simple processing of the results.
The keyboard is divided into immediately-identifiable areas (direct functions, Pop-up menus, cursor, etc.) and the wide colour screen (diagonal 148 mm) uses the same pictograms as the keyboard. The display modes are structured. These direct-access functions help save extra time.
Specific caps have been developed to ensure that the C.A 8436 analyser is waterproof.
New!
Breakdown of the reactive power values, with the concept of non-active power (N), distorting power (D) and reactive power (Q1).
